Ceiling Mount with 90 degree tilt - For Dental Operatory

Ceiling Mount with 90 degree tilt - For Dental Operatory
Click Image to Enlarge
Ceiling Mount with 90 degree tilt - For Dental Operatory
Ceiling Mount with 90 degree tilt - For Dental Operatory
Ceiling Mount with 90 degree tilt - For Dental Operatory
Ceiling Mount with 90 degree tilt - For Dental Operatory
Ceiling Mount with 90 degree tilt - For Dental Operatory
Ceiling Mount with 90 degree tilt - For Dental Operatory
Item Number: DD
Suggested Retail: $149.95
Our Price: $124.95
Choose Ceiling Plate:
Flat Ceiling
Angled Ceiling (+$10.00)
Unistrut (+$10.00)
11CP001 (+$10.00)
Choose Total Length:
24.5 to 37.5 Inches
16.5 to 24.5 Inches
24.5 to 47.5 Inches (+$21.95)
44.5 to 57.5 Inches (+$27.95)
54.5 to 67.5 Inches (+$31.95)
6 1/2 Inch length (-$24.00)
No Mast (-$30.00)
Quantity:
Usually ships the next business day

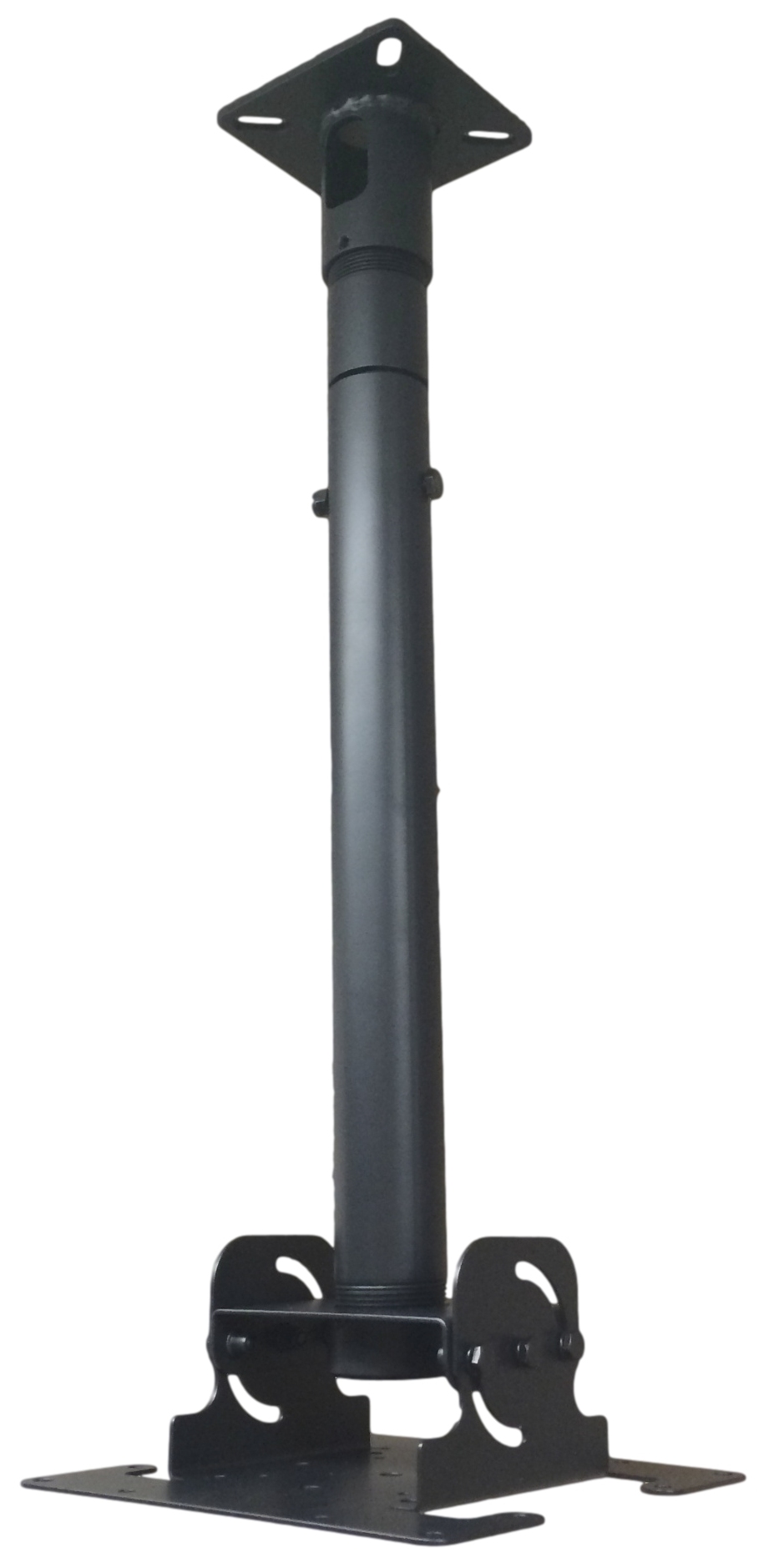

Designed to mount a TV or Monitor above a dental chair for patient viewing. This mount is designed for use in dental offices, where the television needs to be mounted with the screen horizontal to the floor. The tilt angle on this mount has 94° of adjustment and can be adjusted from vertical to fully horizontal.

  • Weight rating 75 lbs.
  • VESA mounting patterns up to 200 x 200 mm.
  • We rate it up to 39 inch screens, but it will fit any TV that weighs less than the 75lb weight rating and has a compatible mounting hole pattern.
  • Black powdercoat finish

Ceiling Plate Options:

  • Flat Ceiling Plate
    This is the default choice that most people need.
  • Angled Ceiling Plate
    You would choose this to mount to a ceiling that is angled, sloped, or cathedral.
  • Adapter for Unistrut
    Unistrut is a U-Shaped metal channel commonly used in construction.
  • 11CP001 Ceiling Plate
    This plate is welded steel construction, made in USA and has a large pass through hole in the top, making it easier to pass cables through.
  • Call or email us if you need help picking, or possibly a different solution.

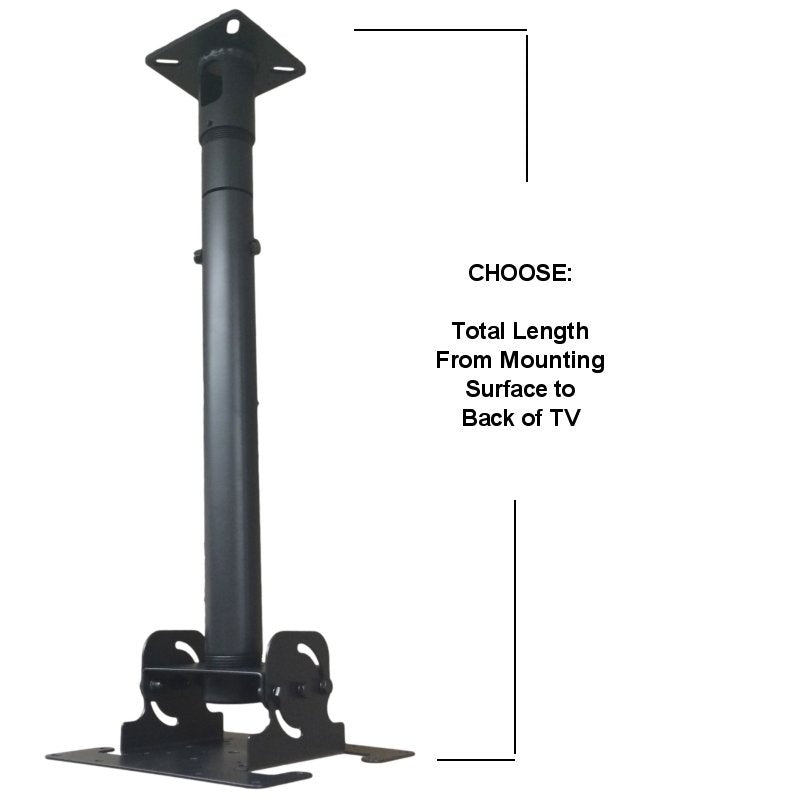

Total Length Choices:

All measurements are measured from where the top plate mounts down to the about the middle of the TV screen.
  • 24.5 to 37.5 inches is the default, this configuration uses this 20-33 Adjustable Pipe that is adjustable in 1 inch increments.
  • 16.5 to 24.5 Inches uses this 12-20 Adjustable Pipe that is adjustable in 1 inch increments.
  • 24.5 to 47.5 Inches uses the 20-33 Adjustable Mast with the 10 Inch Extension and is adjustable in 1 inch increments.
  • 44.5 to 57.5 Inches uses the 20-33 Adjustable Mast with the 20 Inch Extension and is adjustable in 1 inch increments.
  • 54.5 to 67.5 Inches uses the 20-33 Adjustable Mast with the 30 Inch Extension and is adjustable in 1 inch increments.
  • 6 1/2 Inch is the shortest option available for this mount. It includes the shortest pipe we sell and is not adjustable.
  • No Mast: You would choose this option if providing your own pipe or using a custom combination of other pipes we sell. Keep in mind, the mount and the ceiling plate give you 4.5 inches of distance down and you NEED a threaded pipe to connect them together. Please call us or email us and we can help you get the right parts.

Why place a television above a dental chair?

Patient entertainment: A television above a dental chair can provide entertainment for patients during long or complex dental procedures. This can help to alleviate anxiety or boredom and make the experience more enjoyable.

Education: A television above a dental chair can be used to educate patients about their treatment options or to demonstrate proper oral hygiene techniques. The television can be used to show videos or presentations that help patients understand their dental health and treatment options.

Distraction: A television above a dental chair can be used to distract patients from the sights, sounds, and sensations of the dental procedure. This can help to reduce anxiety and make the experience more comfortable.

The placement and use of a television above a dental chair may vary depending on the specific needs and preferences of the patient and the dental practice. It's important to ensure that the television is properly positioned and secured to avoid accidents or injuries.
Product Details:
Maximum Weight

75 lbs
Tilt

0° to 94°
Mounting Hole Range
75 to 200 mm Wide

       75 to 200 mm
       High
This mount fits screens with mounting holes on the back that fall within the following range:

Horizontal (Left to Right) Hole Spacing
Between and

Vertical (Top to Bottom) Hole Spacing
Between and
Fits VESA Standards
Width X Height in mm
75x75, 100x100, 100x200, 200x100, 200x200
Distance From Top of Mast to Center of Screen24.5 Inches to 37.5 inches
ManufacturerExpert Mounts
