Back to Back Ceiling Mount for 32 to 88 inch, Rotate/Adjustable Mast

Back to Back Ceiling Mount for 32 to 88 inch, Rotate/Adjustable Mast

  • Back to Back Ceiling Mount for 32 to 88 inch, Rotate/Adjustable Mast
  • Back to Back Ceiling Mount for 32 to 88 inch, Rotate/Adjustable Mast - View 2
  • Back to Back Ceiling Mount for 32 to 88 inch, Rotate/Adjustable Mast - View 3
  • Back to Back Ceiling Mount for 32 to 88 inch, Rotate/Adjustable Mast - View 4
1 4
Item Number:

33CE024-Flat-Ceiling-1831
$249.95 USD
$399.99 USD $249.95 USD
Choose Ceiling Plate:
Choose Length:
Usually ships the next business day

  • Commercial quality
  • Tilt up to 15° down
  • Easily Rotate 360°
  • Fits screens up to 88 inches
  • Fits VESA patterns up to 600 x 400
  • Constructed of heavy gauge metal
  • Uses 1-1/2 inch pipe for the mast
  • 300 lbs weight capacity
  • Excellent cable management capabilities. Cables enter bottom of mast and come out through hole in side of ceiling plate or out the top of the ceiling plate.

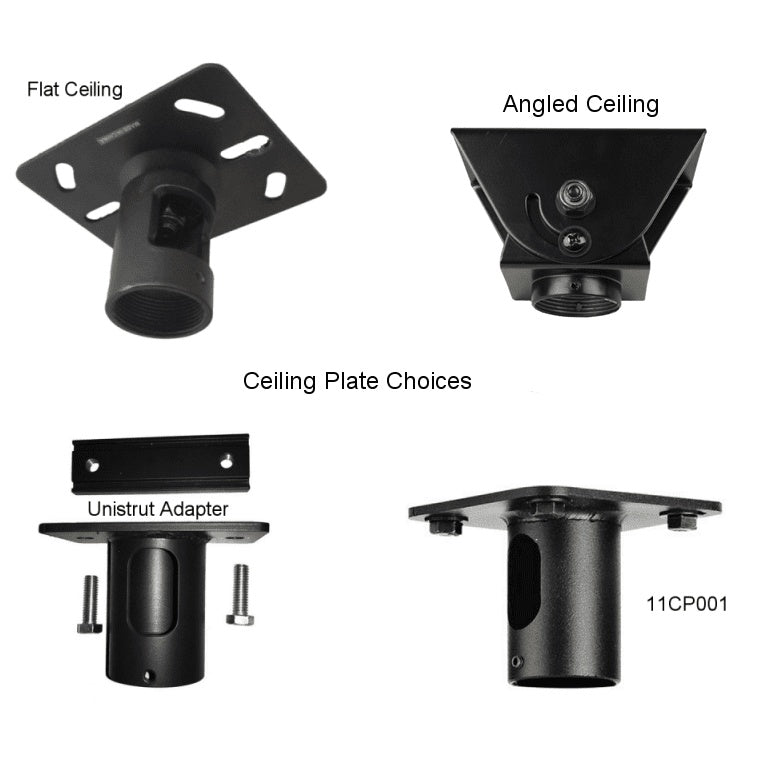

Ceiling Plate Choices:

  • Flat Ceiling Plate
    This is the default choice that most people need.
  • Angled Ceiling Plate
    You would choose this to mount to a ceiling that is angled, sloped, or cathedral.
  • Adapter for Unistrut
    Unistrut is a U-Shaped metal channel commonly used in construction.
  • 11CP001 Ceiling Plate
    This plate is welded steel construction, made in USA and has a large pass through hole in the top, making it easier to pass cables through.
  • Call or email us if you need help picking, or possibly a different solution.

Extension Length Choices:

All measurements are measured from where the top plate mounts down to the about the middle of the TV screen.
  • The default length is 18 to 31 inches, this configuration uses this 20-33 Adjustable Pipe that is adjustable in 1 inch increments.
  • 10 to 18 Inches uses this 12-20 Adjustable Pipe that is adjustable in 1 inch increments.
  • 18 to 41 Inches uses the 20-33 Adjustable Mast with the 10 Inch Extension and is adjustable in 1 inch increments.
  • 38 to 51 Inches uses the 20-33 Adjustable Mast with the 20 Inch Extension and is adjustable in 1 inch increments.
  • 48 to 61 Inches uses the 20-33 Adjustable Mast with the 30 Inch Extension and is adjustable in 1 inch increments.
  • No Mast: You would choose this option if providing your own pipe or using a custom combination of other pipes we sell. Keep in mind, the mount and the ceiling plate subtract 2 inches of distance down and you NEED a threaded pipe to connect them together. This subtraction instead of addition is because the pipe comes down pas the middle of the screen. Please call us or email us and we can help you get the right parts.

Applications: If the two televisions are mounted back to back, it would allow two different groups of people to watch different programs or events at the same time. This could be useful in a commercial setting, such as a sports bar or restaurant, where there may be multiple events or games happening simultaneously that patrons want to watch.
Product Details:
Recommended for Screens Sized


32 to 88 inches
Maximum Weight

300 lbs
Tilt

15°
Mounting Hole Range
55 to 760 mm Wide

       65 to 470 mm
       High
This mount fits screens with mounting holes on the back that fall within the following range:

Horizontal (Left to Right) Hole Spacing
Between 55 mm (2.2 inches) and 760 mm (29.9 inches)

Vertical (Top to Bottom) Hole Spacing
Between 65 mm (2.6 inches) and 470 mm (18.5 inches)
Fits VESA Standards
Width X Height in mm		75 x 75
100x100
200x100
200x200
200x300
300x300
400x200
400x300
400x400
400x600
Distance From Top of Mast to Center of Screen18 to 31 inches
ManufacturerExpert Mounts

Related Items and Accessories
Ceiling Mount Extension - adds 10 Inches
Ceiling Mount Extension - adds 20 Inches
Ceiling Mount Extension - adds 30 Inches
TV and Projector Mount Accessories that work with 1 1/2 Inch NPT Pipe
Ceiling Mount Extension - adds 10 Inches

Suggested Retail: $29.95
Our Price: $24.95
Ceiling Mount Extension - adds 20 Inches

Suggested Retail: $39.95
Our Price: $30.95
Ceiling Mount Extension - adds 30 Inches

Suggested Retail: $42.95
Our Price: $34.95
TV and Projector Mount Accessories that work with 1 1/2 Inch NPT Pipe

TV Ceiling Mount Component Shelf - Clamps on Mast
Glass Shelf for TV Mounts - Hooks on Mount
TV Ceiling Mount Component Shelf - Clamps on Mast

Suggested Retail: $49.95
Our Price: $34.95
Glass Shelf for TV Mounts - Hooks on Mount

Suggested Retail: $69.95
Our Price: $39.95

Product Details

  • Recommended for Screens Sized: 32 to 88 inches
  • Maximum Weight: 300 lbs
  • Tilt: 15°
  • This mount fits screens with mounting holes on the back that fall within the following range:
    • Horizontal (Left to Right) Hole Spacing
      Between 55 mm (2.2 inches) and 760 mm (29.9 inches)
    • Vertical (Top to Bottom) Hole Spacing
      Between 65 mm (2.6 inches) and 470 mm (18.5 inches)
  • Fits VESA Standards (Width X Height) in mm: 75 x 75
    100x100
    200x100
    200x200
    200x300
    300x300
    400x200
    400x300
    400x400
    400x600
  • Distance From Top of Mast to Center of Screen: 18 to 31 inches
  • Manufacturer: Expert Mounts
